X-23 Bolt on Kit

Triple Trees

23" Wheel Bolt On Kit

NOTE: Now fits all 2014 up Touring models, including
Road King and the new 2015 Road Glide.

Triple Trees
Choose Option

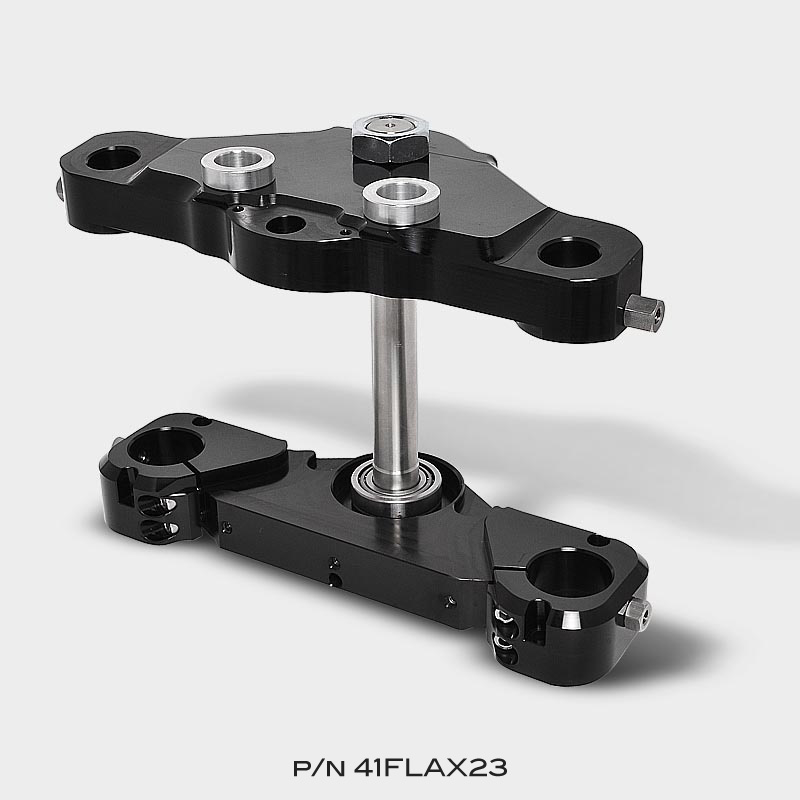

Hawg Halter now offers a BOLT-ON triple tree kit for a 23" wheel installation on FL touring model bikes.
The design geometry of this triple tree results in a trail measurement similar to stock factory HD speciifications.
If you want a quick and easy, cost effective method of safely installing a 23" wheel, this is the solution.

Our new kit offers the following features and benefits;
 Fits all 1987 and up FL Touring Model bikes with standard late model ignition location, both fairing and non-fairing.
6 degree triple tree rake results in stock trail geometry
Responsive and stable handling Performs as good or better than stock
Direct bolt-on, NO modifications necessary
Positions front wheel forward approximately 2"
Headlight angle can be adjusted without the use of a raked bezel kit
Does not require fork extensions and uses stock length fork covers
Kit includes fork travel limiters to prevent fender interference
Stock fork lock fully functional Works with stock and custom size rear wheels

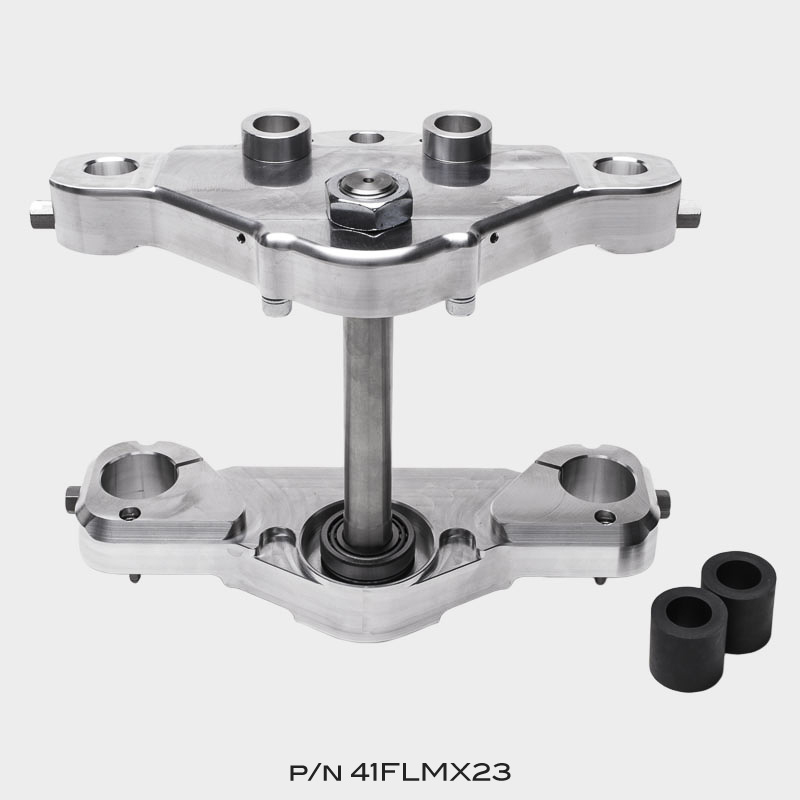

Available in machine or black finish
